Voltage：12-48V

Amps：300A-900A

Position：2

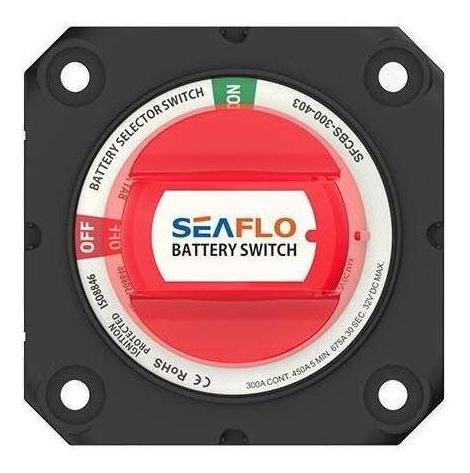

Switches a single battery to a single load group. Tin-plated copper studs for maximum conductivity and corrosion resistance. Studs accept 3/8" (M10) ring terminals. One-piece terminal stud design never loosens over time. Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction.

FEATURES & BENEFITS

•  Switches a single battery to a single load group

•  Tin-plated copper studs for maximum conductivity and corrosion resistance

•  Studs accept 3/8" (M10) ring terminals

•  One-piece terminal stud design never loosens over time

•  Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction

Regulatory

•  CE, RoHS, ISO 8846

•  Meets all American Boat and Yacht Council (ABYC) requirements for battery switches

•  Meets UL 1500 and SAE J1171 external ignition protection requirements

•  IP66 – protected against powerful water jets
